ALUMINIUM LOUVRE 150-E

A 150-E louvre system is a non-retractable slatted louvre. These louvres are made from high-grade extruded aluminium, and have a width 150 mm. The 150-E louvre system is suited for all kinds of external installations; horizontal, vertical, sloping, and upside down. 150-E louvres are usually movable, but can also be placed in a fixed position. While most louvres open up to 90 degrees, the 150-E can open up to 105 degrees!

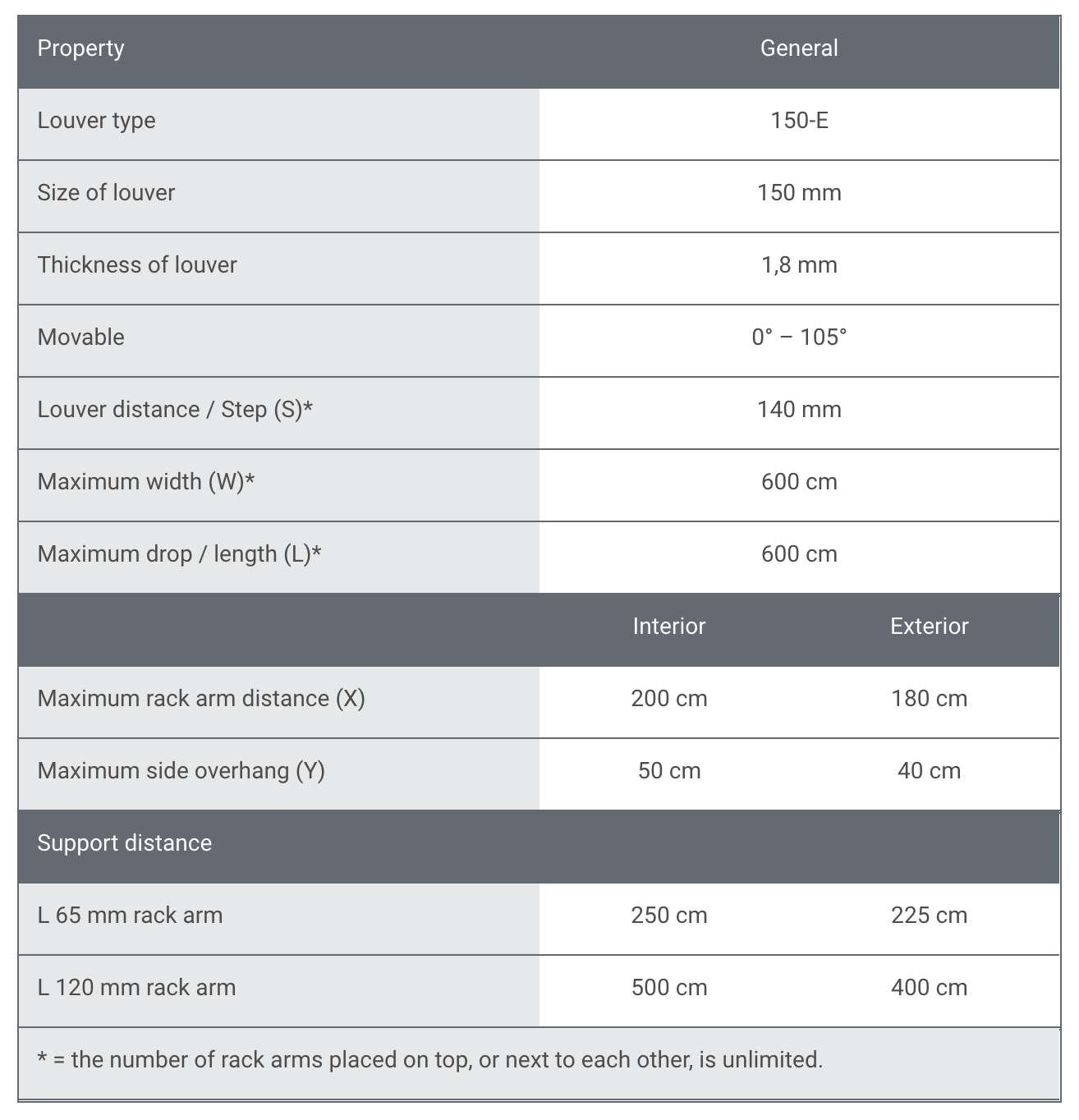

TECHNICAL INFORMATION

The front, of the 150-E louvre has a flat shape, offering a good overlap. The back of the blade is designed for optimal fixation of the clip that holds the slat. The design of the back side of a louvre follows from the function and form of the front.

PROFILE OF 150-E LOUVRE

150-E LOUVRE SYSTEM

The following image shows a schematic representation of a 150-E louvre system. Such a system consists of at least two rack arms, and a number of louvres, blades.

150-E louvres, the blades, are moveable, and can be placed in any position. Our louvre systems can be installed horizontal, vertical, in any desired slope, and upside down.

DOWNLOAD FOR ARCHITECTS & DESIGNERS


UPGRADE TO THE 155-E LOUVRE

You may want to opt for a 155-E Louvre which has an interlocking louvre slat system. The 155-E (155mm) louvre provides a 100% light tight for complete blackout. This particular louvre type has a slightly different aesthetic look to the 150-E louvre. Please see the front view comparison diagram here.
